The high-energy ions produced by electric propulsion thrusters are travelling at speeds in the tens of thousands of m/s. Graphite’s excellent sputtering resistance makes it a useful material for a facility beam dump.



beamdump_013009.jpg​

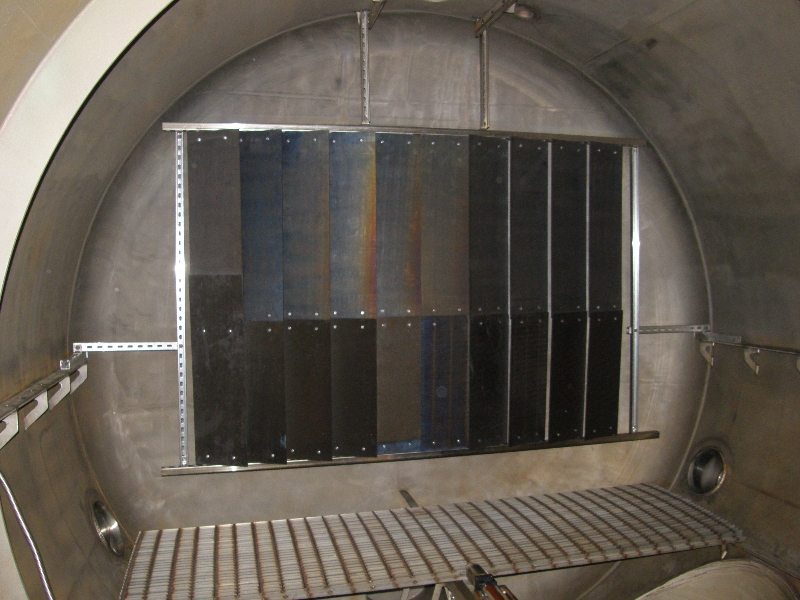

VTF-1

Slanted Beam Dump Panel



vtf2_beam_dump-1024x680_0.jpg​

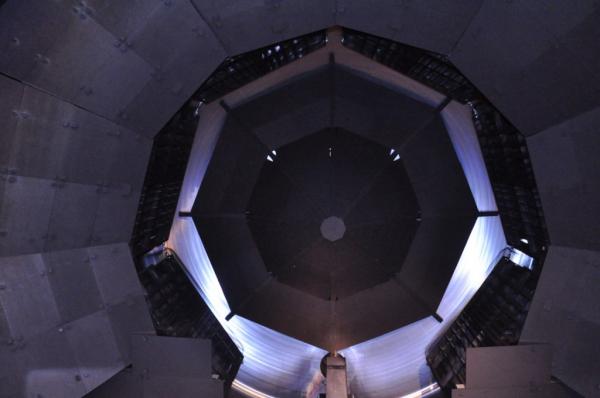

VTF-2

Conical Beam Dump Structure
